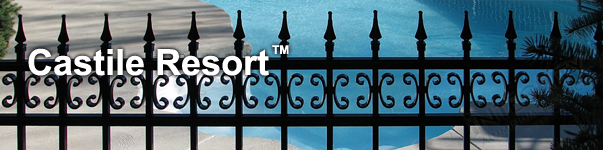

Regal and magnificent, the Castile Resort™ proudly asserts itself as an
object of splendor. Peaked with the upwardly exuberant Excelsior™
finials and graced with elegant butterfly scrolls, the Castile Resort™
meets the B.O.C.A. pool safety code* at 60'' high. If you want your
outdoor space to make a statement, let the Castile Resort™ do the
iNTEGRITY fence panels are made to get the job done!
There are 3 types of fence panels: Standard, Xtra-Rack™, and Max-Rack™. All fence panels, in any style, are made "standard" unless otherwise specified by the customer. The standard panels of most (not all) Integrity™ fence styles can ''rack'' or adjust to conform to a slight grade slope. learn more!
Any Integrity™ fence style can be ordered in either Classic or Flush Bottom. This option is cosmetic and does not impact the price of your fence. In certain circumstances though, a Classic Bottom configuration could necessitate a taller height in order to comply with the BOCA Pool Safety Code.
Since the world is not flat, it is often necessary to install fence panels on a sloped terrain. Standard fence panels can ''rack'' or conform to a grade slope, but there are limits (which are noted in the SPECS tab of this link). There is no upcharge for Xtra-Rack™ or Max-Rack™ panels for residential and commercial grade fences.
Double the number of pickets and tighten the space between them to convert any style into an iFence™ "Extreme". The Extreme™ feature makes it safer for small animals and adds a measure of privacy. The tighter picket spacing is not extended up beyond the middle horizontal rail in any three-rail design. Panels come factory-assembled as "Extreme". This optional feature cannot be later added.
SuperRail™ is an upgrade that doubles up the walls of our standard horizontal rails, hiding the fasteners and adding incredible strength. It also closes off the bottom of the horizontal rails, making the panels virtually insect-free! Any Integrity™ fence grade can be converted into the SuperRail™ Concealed Fastener System (CFS). learn more!
Non-conforming conditions are common to fencing, so while others offer only 6' wide panels in pre-determined heights, we offer you a greater variety of sizes as a better solution for real circumstances. learn more!
For small orders or add-on orders, you may want to save on freight charges by ordering panels as ''knock-downs.'' This means that they will be shipped unassembled using UPS or Fedex Ground services. There is no upcharge for this service, but we have a two panel per day limit per customer. On rare occasions this service may not be available for purposes of expedited shipping.
1 Select Desired Configuration
Gates can be ordered single (walkway) or double (driveway), standard (straight) or arched, as depicted. These drawings are only a representation – your gate design will reflect your selected style.
2 Review Included Gate Hardware
All Classic Collection™ gates are, by default, equipped with a Lokk-Latch, and Multi-Fit hinges, each of which is sold separately. Double (driveway) Classic gates include, by default, one standard drop rod, which is sold separately. Specify any changes at time of order because all gate frames are sized to accommodate hardware for a particular opening. Changes in hardware can often mean changes in the size of a gate frame even if the size of the opening is constant!
3 Specify Gate Width
The width of a gate is the width of the opening, not the actual width of the gate frame.
4 Specify Gate Height
The height of a gate is always the same as the height of fence panels ordered unless otherwise specified. Custom heights are available and cost effective! When ordering gates independent of fence panels, simply specify the desired height.
5 Pick Your Posts
All Classic Collection™ gate posts are by default 2'' square x .125'' wall thickness, in either ends or blanks. (These same posts can be ordered with .060'' or .080'' wall thicknesses, both of which are not recommended for use with gates.) Posts can also be upgraded to 2 1/2'' square by .100'' wall thickness. 3'' or 4'' square posts are available but only as blank posts. The length of any of these posts can be of your choosing, sold in one-foot increments from 5' to 9' long. Gates and posts must be purchased separately. Custom post lengths are available and cost effective! Standard caps are always included with every post ordered unless upgraded to ball caps.
6 Consider Additional Options
It is possible to ''dress up'' just the gate on any order of fencing. For instance, you may want to order Ball Caps only for the gate frame uprights, but not the other posts on your fence order. Or, you may want to order adornments for your gate such as Butterfly Scrolls or an Estate Scroll. For wider gates, a welded U-Frame is an important option to consider. Let us help you explore the options. See Options & Accessories (Gates tab) for all of the possibilities – or call us directly, we're ready to assist!
*Double gates often do not comply with local pool fence legal codes. Check local governing authorities before you order double gates for pool enclosures. These codes often vary from one community to another. If a permit is required, we recommend you obtain the permit before ordering. We will provide the specifications you need to determine compliance. Although iFenceUSA™ would love to be current on local codes for your convenience, there are simply too many. Therefore, we will not be accountable for orders that are subsequently deemed noncompliant.
Relax! We'll help you determine your final material list!
The information below is provided to inform, not overwhelm. We want you to know that our products are versatile and options are available to accommodate a wide range of circumstances and/or preferences! We'll always be at your side to help you order what you will need.
Endless Attachments can make installations a breeze!
Mounting fences to brick, wood or concrete surfaces is easy with our Endless™ line of attachment brackets. Uniquely designed, these attachments are available in every grade and color in stationary, horizontally-adjustable, and vertically-adjustable wall mounts, as well as attractive floor flanges for posts.
- View architectural schematics for this style >>
- Standard Panels: 5' high x 6' wide
Panels come fully assembled
Height of fence panel is actual, not nominal
- Custom Width or Height Panels and Gates: Available and cost-effective!
- Colors: Black, Bronze, White, Sandstone
Most colors available in gloss or matte finish
- Finish: TGIC technology advanced powder coating system
- Vertical Pickets: 5/8'' square x .050'' walls
Spacing Between Pickets: 3 13/16''
Can be ordered with staggered-height spear tops
Fasteners: Stainless steel
- Horizontal Rails: Three at 1 1/8'' x 1'' nominal with .080'' side walls and .062'' top walls
- Bottom Rail Placement: Flush bottom
- Posts: 2'' square x .080'' walls, all types
All posts include standard caps
- Accessories: Castile Resort™ features factory-installed adornment butterfly scrolls and Excelsior™ finials which are also available in Gold
- Alloy: 6005-T5, minimum strength 35,000 PSI
- Gate Frame: Welded construction with 2'' square uprights!
Gate architecture corresponds to style of fence
- Gate Posts: 2'' square x .125'' walls, ends or blanks
- Gate Hinges: Tru-Close® brand is recommended and priced separately
- Gate Latch: Magna-Latch® brand is recommended and priced separately
- Fence panels, posts, gates, gate hardware, and accessories are all sold separately
- Complies with B.O.C.A. pool safety code*
- Grade Slopes: Castile Resort™ fences are rackable up to 3'' over a span of 6' Available only in Standard panels unless custom modified
*Before ordering, we urge you to check local governing authority regarding pool fence legal codes. These codes often vary from one community to another, and may even vary from B.O.C.A. standards. If a permit is required, we recommend you obtain the permit before ordering your fence. We will provide the specifications you need to determine compliance. Although iFenceUSA™ would love to be current on local codes for your convenience, there are simply too many. Therefore, we will not be accountable for orders that are subsequently deemed noncompliant.
