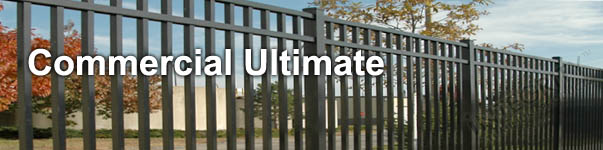

The Ultimate™ grade is best when only the strongest fence will do! Any Integrity™ fence style can be ordered in this grade. With strong 1'' square vertical pickets, a seriously beefed up SmartRail™ and optional 3'' square posts, the Ultimate Collection™ lives up to its name! Also, Ultimate™ grade Driveway Gates maintain their structural integrity in sizes much wider than our residential or even Premier™ grade, making their use appropriate even for industrial applications!
|
Ultimate Collection SPECIFICATIONS
|
- Fence/Gate Style: Choose any Integrity™ fence/gate style
- Standard Panel Height: 3' to 12',priced in increments of 1'
Panels come fully assembled; Gates fully welded
Height of fence panel/gate is actual, not nominal
- Standard Fence Panel Width: 6' or 8'
- Custom Width or Height Panels and Gates: Available and cost-effective!
- Colors: Black, Bronze, White, Sandstone, Beige,
Forest Green
Most colors available in gloss or matte finsh
- Finish: TGIC technology advanced powder coating system
- Vertical Pickets: 1'' square x .062'' walls
Spacing Between Pickets: 3 5/8''
Extreme™ 1 1/2'' spacing option available
Fasteners: Stainless steel
- Horizontal Rails: 1 5/8'' x 1 5/8'' nominal with .100'' side walls and .070'' top walls
- Bottom Rail Placement: Classic Bottom or optional Flush Bottom
- Posts: 2 1/2'' square x length x .100'' walls, all types
Various lengths available as needed
All posts include standard caps
- Alloy: 6005-T5, minimum strength 35,000 PSI
- Gate Frame: Welded construction with 2 1/2'' square uprights!
- Gate Posts: 2 1/2'' square x length x .100' walls, ends or blanks
Various lengths available as needed
- Gate Hinges: Not included. Sold separately, see options
Titan™ hinges are recommended
- Gate Latch: Not included. Sold separately, see options
- Fence panels, gates, posts, and accessories are sold separately
- Grade Slopes: Rackability can vary greatly depending on chosen style. Most panels can be ordered with Xtra-Rack™ or Max-Rack™ feature.
